ball cage retainer bush bearing, Aluminum balls bearing cage bushing for molds

FOB Reference Price:Get Latest Price
$0.50 - $5.00 / Piece | 10 Piece/Pieces $100 (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Hunan, China
Brand Name:
JSB
Model Number:
FZ
Shaping Mode:
Punching Mold
Product Material:
Copper
Product:
Vehicle Mould
Ball cage material:
Alumimnum
Ball cage material optional:
Brass POM plastic
Standard:
DIN1494
Application:
Vehicle Moulds
Material of balls:
bearin steel
Ball sizes:
2.5,3,4,5mm
Hardness:
62-67HRC
Small order:
Acceptable delivery by courier
Sizes:
From 1040 to 100150
Samples:
Charged of sample ball cage bush
Supply Ability
Supply Ability:
1000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Carton+Pallet
Port
Shanghai
Lead Time :
15-30 days

  ball cage bush,ball bush bearing,Alumimum balls cage,POM ball bearing cage,brass ball bush for moulds

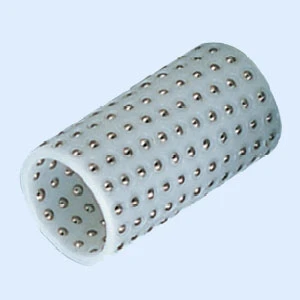

POM resin (FZP) base material and well arranged steel balls.



The products are widely used in machinery industry, such as cold punching mold, precision machine tools, etc.



  • Features:

1. Quite low friction coefficient

2. Able to move in both radial and axial directions

3. High precision, can working in high speed

4. Normal size from 1950 to 80130



  • Specifications:

Cage Material

FZB

Bronze + balls

FZA

Aluminium + balls

FZP

POM + balls

Load capacity



30N/mm2

Speed limit



6m/s

Yeild Strength



147~294N/mm2

Friction coef



0.01~0.08

Tolerance of balls



<0.002mm

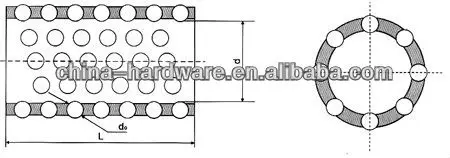

Diamensions:

Inner diameter:   d

Outer diameter:  d+d0

Length:          L





  • Production Line

  • Inspection



  • Packings:



  • Other bushings:

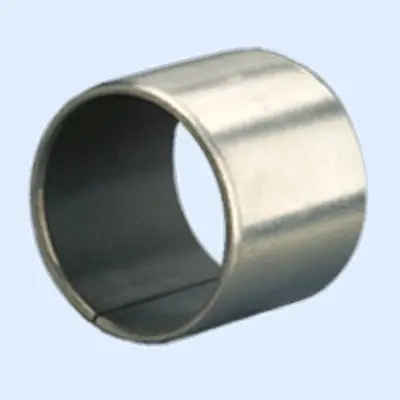

Brass cage / Alumimnum cage / Composite bushing / Graphite bronze bushing / Wrapped bronze bushing / Sintered bushing





Our sliding bearings including:



SF-1(du) oilless bearing bushing (PTFE Composite)

SF-2(dx) slide bearing bushing (POM Composite)

FB090(FB090G) bronze bushing

FB092 bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer



Also we can make customized bushings as per your drawings or samples.

Welcome inquiry us for details so that we can offer you related information at the first time!
