Quick Details

  • Place of Origin: China (Mainland)
  • Brand Name: OEM
  • Model Number: JDB
  • Type: Sleeve
  • Material: Bronze or Steel
  • Types:: Sleeve, flange, ring, plate, etc
  • Lubricating: solid graphite
  • Standard: DIN1494,ISO3547
  • Samples: Charged samples of bronze bushing
  • Samples' delivery cost: Paid by buyer
  • Small order: Acceptable, delivery by courier

Packaging & Delivery

Packaging Details Plastic films
Carton
Pallet
Delivery Time 30 days

Specifications

Graphite lubricating bushing
Also other kinds of oilless bearings
Stable quality,conpetitive price, fast delivery!

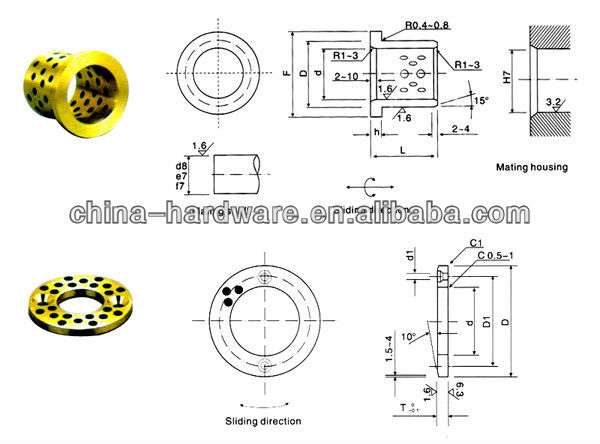

Graphite lubricating bushing



  • Introduction

This series of products are made of strong cast brass with graphite lubricating. The base brass can withstand high load and the solid lubricants will provide self-lubricating when using.



The products are widely used in machinery industry, such as casting machine, mining machinery, shipping, steam turbine, etc.



  • Features:

1. Without pre-lubrication required

2. Able to working under extreme high/low temperature with low speed



  • Specifications:

Material

Bronze

CuZn25Al6Fe3Mn3 + Graphite

Iron

Cast-iron + Graphite

Density



8.2g/cm3

Tensile Strength



>=755N/mm2

Anti-compact Tenacity



>=400~500KJ/m3

Hardness



>=200HB

Max Load Pressure



100N/mm2

Speed Limit



0.5m/s

PV value limit



1.65N/mm2.m/s

Friction coef

Oil Lubrication

0.03

Dry Friction

0.16

Working temperature



-40~+300°C



Types:







  • Packings:





  • Other bushings:

FB092 bronze bushing / sintered bushing / PTFE composit bushing / FB090 wrapped brozne bushing





Our sliding bearings including:



SF-1(du) oilless bearing bushing

SF-2(dx) slide bearing bushing

FB090(FB090G) bronze bushing

FB092 bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer



Also we can make customized bushings as per your drawings or samples.

Welcome inquiry us for details so that we can offer you related information at the first time!
