Quick Details

  • Place of Origin: Hunan, China (Mainland)
  • Brand Name: OEM
  • Model Number: JF800
  • Type: Sleeve
  • Material: alloy, steel backing + alloy bronze
  • Surface finishing: Tin-plating or bronze plating
  • Lubricating: Oil
  • Oil grooves: Adjustable as per drawing
  • Standard to be.. a,: DIN1494,ISO3547
  • Standard to be.. b,: JIS

Packaging & Delivery

Packaging Details Plastic bag
Carton
Pallet
Delivery Time 30 days

Specifications

bimetal sleeve bushing
Fast delivery,
competitive prices,
high quality

bimetal sleeve bushing



  • Introduction

Bimetal sleeve bushing is made of duple layer composites:

Quality low-carbon steel as base, and multi-times rolled porous copper alloy surface layer.



The products are special designed for heavy duty, such as auto engines, transmission gearbox, construction machinery, agriculture machinery, etc.



  • Features:

1. High fatigue and impact bearing capacity

2. High loading capacity

3. Lubricating grooves design



  • Specifications:

Material

JF-800

Steel+Bronze(CuSn10Pb10)

JF850

Steel+ Bronze(CuSn6Zn6Pb3)

JF-720

Steel+ Bronze(CuSn4Pb24)

JF-20

Steel+ Bronze(AlSn20Cu)

JF700

Steel+ Bronze(CuPb30)

Load capacity



150N/mm2

Speed limit

Oil lubricating

2.5m/s

Dry Friction

0.4m/s

PV value limit

Oil lubricating

10N/mm2.m/s

Dry friction

2.8 N/mm2.m/s

Mating axis required

Hardness

>=48~53HRC

Roughness

Ra=0.16~0.63

Friction coef



0.05-0.22

Working temperature max.



200°C

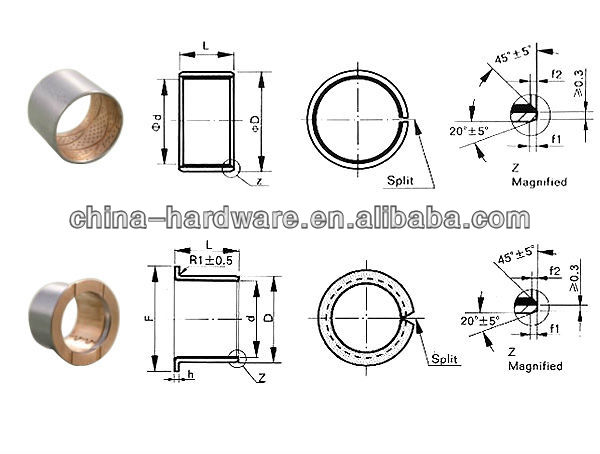

  • Standard Types:



  • Production Flow

 Material sheet preparing

Product finishing

  •  Packings:





  • Other bushings:

Solid bronze bushing / Wrapped brozne bushing / DX bushing / DU bushing / Sintered bushing



Our sliding bearings including:



SF-1(du) oilless bearing bushing

SF-2(dx) slide bearing bushing

FB090(FB090G) bronze bushing

FB092 bronze bushing

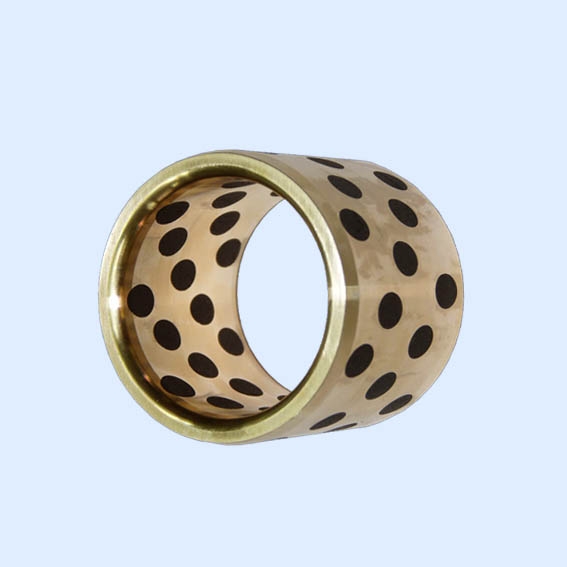

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer



Also we can make customized bushings as per your drawings or samples.

Welcome inquiry us for details so that we can offer you related information at the first time!
