Quick Details

  • Place of Origin: China
  • Brand Name: OEM
  • Model Number: DU Sliding bushing
  • Type: Sleeve
  • Material: METAL + PTFE
  • Backing material: Steel, bronze, or S.S.
  • Inner layer material: PTFE
  • Inner layer color: Grey,Black,Pink,Red,Orange
  • Standard: DIN1494
  • Types: Sleeve,Flange,Ring,Plate, or as per drawing
  • Samples: Free samples of standard size sliding bushing
  • Samples courier charge: Paid by buyer
  • Small order: Acceptable, Delivery by courier

Packaging & Delivery

Packaging Details Carton
Pallet
Delivery Time 30 days

Specifications

slide bushing
Also other bushes
Competitive prices
Fast delivery
Mixture models and sizes order is avaialble

High quality sliding bushing

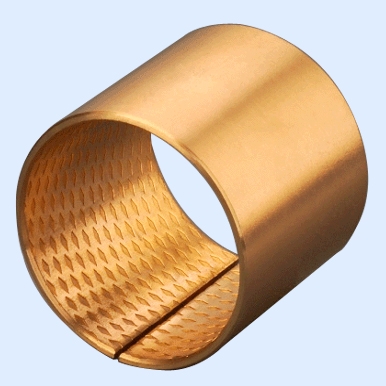

SF-1T(SF-1TW,without lead Pb) is proved from SF-1 and special designed for hydraulic pressure gear pumps. It is wrapped bearing made of triple layer composites:
low-carbon steel as base, porous bronze interlayer and PTFE surface layer.



  • Features:

1. Low friction coefficient,

2. Anti-wear and anti-corrosion

3. Able to be used without oil
4. Low vibration, low noise. compact and light



  • Specifications:

Material

Steel backing

Steel+Sinterd Bronze powder+PTFE+Pb+Polymer

Bronze backing

Bronze+Sinterd Bronze powder+PTFE+Pb+Polymer

Stainless steel

S.S.+Sinterd Bronze powder+PTFE+Pb+Polymer

Stainless steel

Stainless Steel+PTFE +Polymer

Pb Free(RoHS)

All above types without Pb available

Load capacity

Static load

250N/mm2

Dynamic load

140 N/mm2

Oscillating

60 N/mm2

Speed Limit

Oil lubricating

5m/s

Dry friction

2.5m/s

PV value limit

Oil lubricating

50N/mm2.m/s

Dry friction

3.6 N/mm2.m/s

Friction coef



0.04¬0.20

Working temperature



-195~+280°C



  • Cross of composite

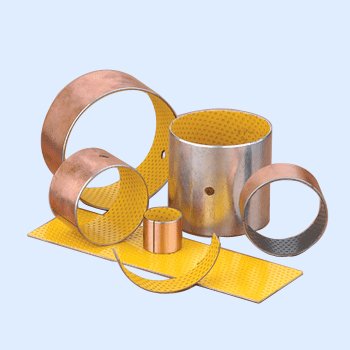

  • Basic types:



  • Production Flow:

Material preparing

Finishing



  • Other bushings:



















DX bushing / Solid bronze bushing / Wrapped bronze bushing / Sintered bronze bushing





Our sliding bearings including:



SF-1(du) oilless bearing bushing (PTFE Composite)

SF-2(dx) slide bearing bushing (POM Composite)

FB090(FB090G) bronze bushing

FB092 bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer



Also we can make customized bushings as per your drawings or samples.

Welcome inquiry us for details so that we can offer you related information at the first time!
