Quick Details

  • Type: Sliding
  • Brand Name: OEM
  • Precision Rating: Class 1
  • Model Number: FB090.FB092
  • Place of Origin: Hunan, China (Mainland)
  • Standard: DIN1494
  • Other materials: Bimetail,DU,DX composite
  • Oil groove: round, diamond,others
  • Lubricating: oil or graphite
  • Samples: Free samples of standard flange bushing is available

Packaging & Delivery

Packaging Details PE bag
Carton
Pallet

FB090 FB092





This Bearings be especially well-suited for applications where lubricant can not be supplied continuously or repeatedly



FB090/092 series is sliding bearings of high grade phosphor bronze with
-very good plain bearing properties
-high durability
-good corrosin resistance
-good fatigue resistance
both types can be used for both axial and radial movement.



FB090has internal lubrication pockets across the surface layer.these lubricating pockets build up a lubricating film that reduces friction,both at start up and during operation.FB092has puncture holes all over the layer suface. These grease deposits build up a lubricating film that reduces friction,both at start up and during operation,in addition,these pits serving as particle collectors in dirty environment.



Specifications:

Material

FB090

Bronze(CuSn8Pb/ CuSn6.5Pb)

FB091

 Bronze(CuZn31Si)

FB092

Bronze(CuSn8Pb/ CuSn6.5Pb)

FB094

Bronze(CuSn8Pb/ CuSn6.5Pb)+Seal Rings

FB090G

Bronze(CuSn8Pb/ CuSn6.5Pb)+Graphite

Load capacity



100N/mm2

Speed limit



2m/s

PV value limit



2.8N/mm2.m/s

Tensile Strength



460N/mm2

Yeild Strength



260N/mm2

Hardness



90~150HB

Mating axis required

Hardness

>=50HRC

Roughness

Ra=0.4~1.0

Friction coef



0.05~0.2

Working temperature max.



150°C

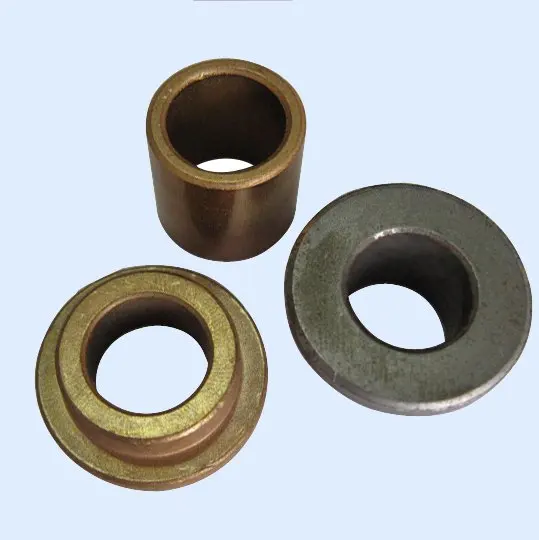

Basic types:

-sleeve

-flange





Productio processing:

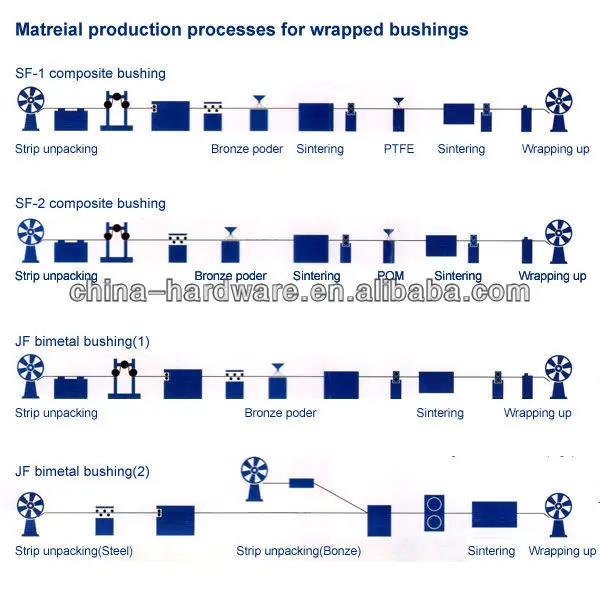

- Material making flow

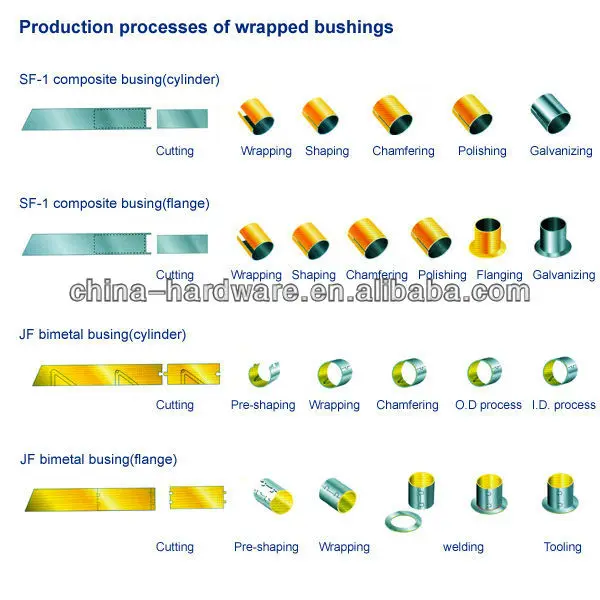

Products finishing flow:

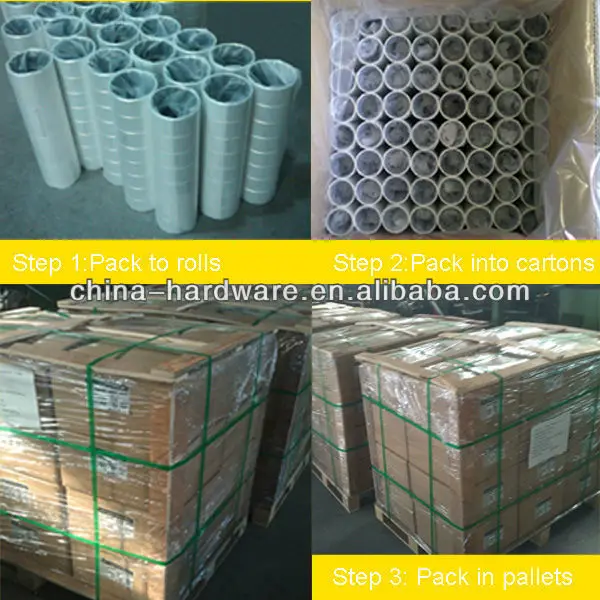

Packings:



Other bushings:



Our sliding bearings including:



SF-1(du) oilless bearing bushing

SF-2(dx) slide bearing bushing

FB090(FB090G) bronze bushing

FB092 bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer



Also we can make customized bushings as per your drawings or samples.

Welcome inquiry us for details so that we can offer you related information at the first time!
