Quick Details

  • Place of Origin: Hunan, China (Mainland)
  • Brand Name: OEM
  • Model Number: DU,DUF
  • Type: ring
  • Material: Composite
  • Backing material: Steel, bronze, stainless steel
  • Standard: DIN1494
  • Finishing: Tin, Bronze plating

Packaging & Delivery

Packaging Details carton or as customer's requirement
No.1 small bushes may put in bages
No.2 big bushes will be in roll then put into carton
No.3 as per the requirements of customers
Delivery Time 15-30 days after getting the deposit

Specifications

Thrust washer:
1.steel backing,porous bronze sintere,PTFE
2.oilless,self- lubricating
3.low wear,low friction
4.long life

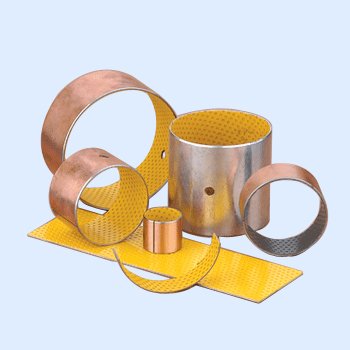

Thrust washer



Introduction:



1,Flanged bushing is made of high quality low-carbon steel backing with sintering porous bronze in its interlayer and the compound of PTFE with Pb on its surface.



2,It can offer the good properties of self-lubricating,anti-abrasion low-friction,fully developing the advantages of metal and multi-element polymer.



3,It is applied to the printing,woven,tobacco and gymnastic machinery etc.







     Tech, Data.



Material

Steel backing

Steel+Sinterd Bronze powder+PTFE+Pb+Polymer

Bronze backing

Bronze+Sinterd Bronze powder+PTFE+Pb+Polymer

Stainless steel

S.S.+Sinterd Bronze powder+PTFE+Pb+Polymer

Stainless steel

Stainless Steel+PTFE +Polymer

Pb Free(RoHS)

All above types without Pb available

Load capacity

Static load

250N/mm2

Dynamic load

140 N/mm2

Oscillating

60 N/mm2

Speed Limit

Oil lubricating

5m/s

Dry friction

2.5m/s

PV value limit

Oil lubricating

50N/mm2.m/s

Dry friction

3.6 N/mm2.m/s

Friction coef



0.04¬0.20

Working temperature



-195~+280°C

       Tolerance: Recommended housing bore tolerance is H7



Types:




      Packing:
No.1    small bushes may put in bages
No.2    big bushes will be in roll then put into carton
No.3    as per the requirements of customers



Other slide bushings:





Our sliding bearings including:



SF-1(du) oilless bearing bushing

SF-2(dx) slide bearing bushing

FB090(FB090G) bronze bushing

FB092 bronze bushing

JDB,JFB solid graphite lubricating bushing

JF bi-metal bushing

FU sintered bronze or iron bushing

FZ POM/Al/Cu ball cage retainer



Also we can make customized bushings as per your drawings or samples.

Welcome inquiry us for details so that we can offer you related information at the first time!
