magnetic fluid feedthrough,vacuum sealing

FOB Reference Price:Get Latest Price
US $100-2,000 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
20 Piece/Pieces per Day
Report Suspicious Activity
Quick Details
Standard or Nonstandard:
Mechanical Seal
Metal, stainless steel, magnetic fluid
Place of Origin:
Hunan, China (Mainland)
Brand Name:
Model Number:
Packaging & Delivery
Packaging Details
Delivery Time

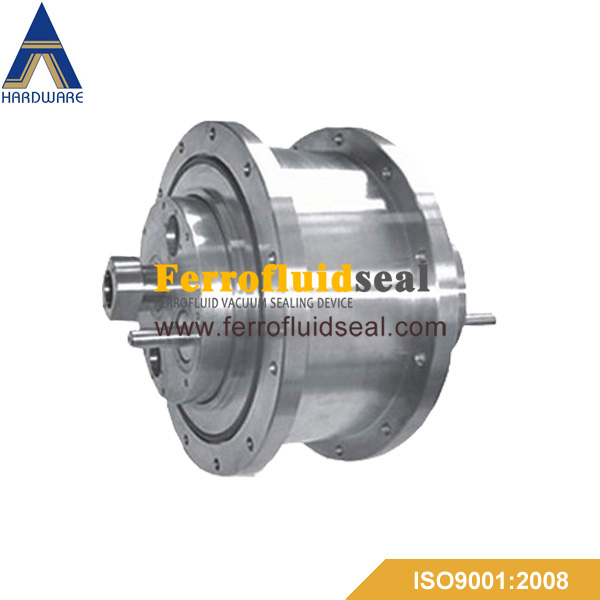

Flanged solid spindle Sealing Feed-through


Model No.      Bearing         Torque capacity (kg·cm)

SFZ010NG      6001               62

SFZ012NG      6002               124

SFZ016NG      6004               372

SFZ020NG      6005               615

SFZ025NG      6206               1066

SFZ030NG      6207               1706

SFZ040NG      6209               3413

SFZ050NG      6211               6106




Intorudction of magnetic fluid/ferrofluid

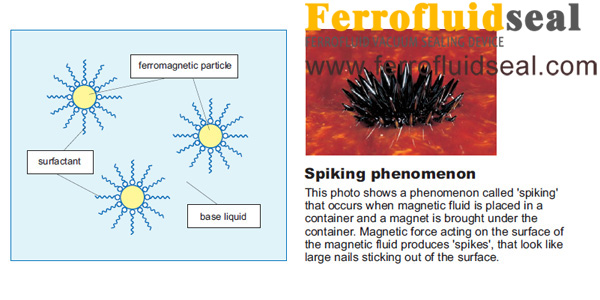

Magnetic fluid is an unusual fluid in that it is attracted to a magnet. In the 1960s, NASA developed the magnetic fluid as part of its space programs. Magnetic fluid has three ingredients: ferromagnetic particles such as magnetite and composite ferrite, surfactant, and a base liquid such as water or oil.
The surfactant coats the 10 nm-dia ferromagnetic particles to avoid coagulation and keep them stably dispersed in the base liquid, forming a ferromagnetic fluid. Its dispersibility also remains stable in high magnetic fields.

This photo shows a phenomenon called 'spiking' that occurs when magnetic fluid is placed in a container and a magnet is brought under the container. Magnetic force acting on the surface of the magnetic fluid produces 'spikes', that look like large nails sticking out of the surface.

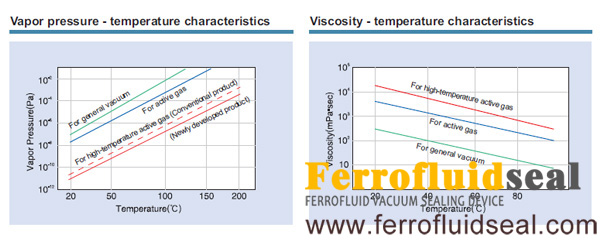

     Vapor pressure - temperature characteristics                             Vi scosity - temperature characteristics

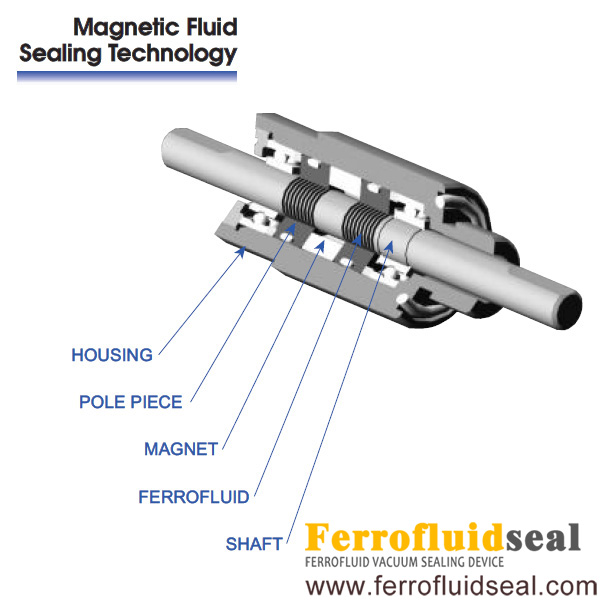

Magnetic fluid/ferrofluid feedthrougs



Fluid Sealing feed-throughs have been widely used in sealing various vacuum equipments, like, vacuum furnace, sinter furnace, brazier, hardening furnace, heat-treating furnace, monocrystalline silicon furnace, vacuum pump, film-coating machine, chemical gas deposit equipment, ion beam etching machine, molecular pump, ultrahigh-speed centrifugal machine and so on.

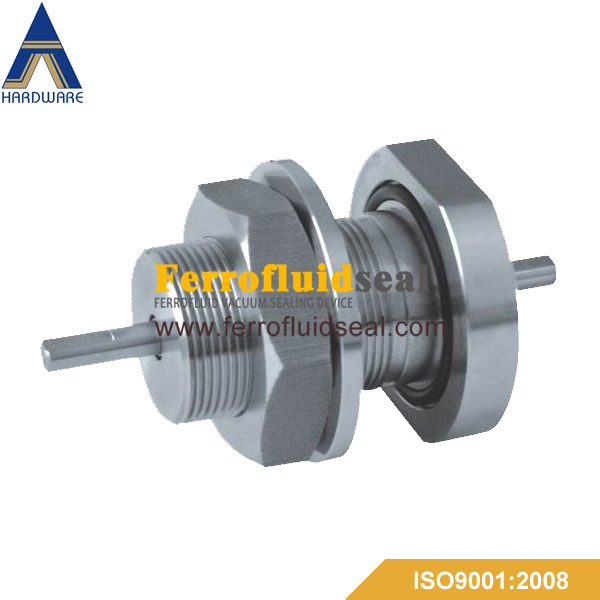

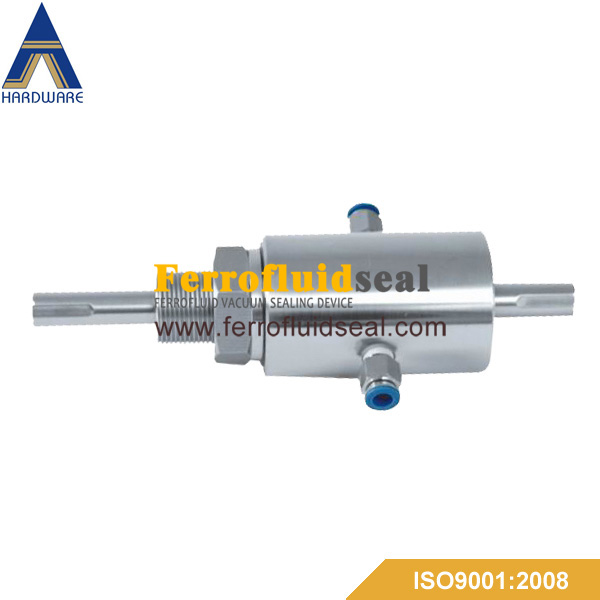

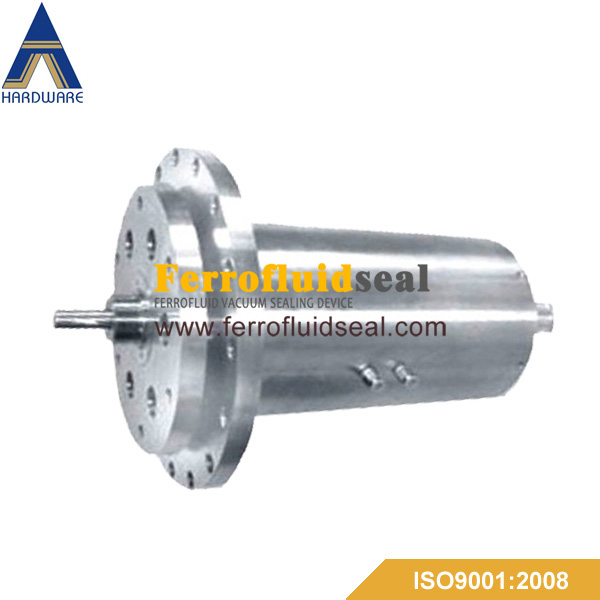

Some feedthroughs produced:






Vacuum Degree :

10-6 Pa

Leakage Rate :

10-12 Pa·m3·s-1

Pressure Resistance :

0.2 MPa

Temperature Range :


Sealing Material :

Non-active Gas

Shell Material :

Non-Magnetic Permeability Stainless Steel

Spindle(Bush) Material :

Magnetic Permeability Stainless Steel

Shell Material

Stainless steel or Aluminum

Water Cooling :

Without / with

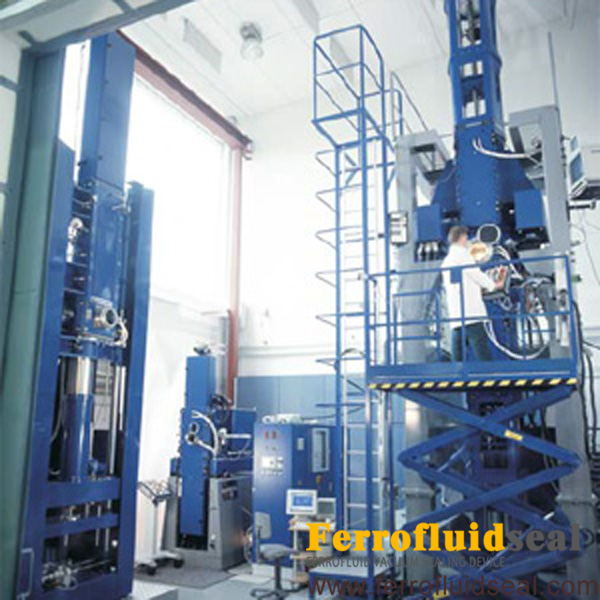

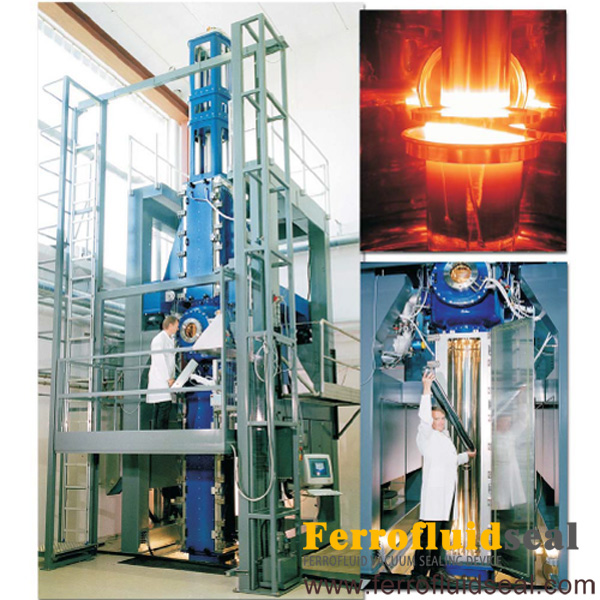

Silicon grower:

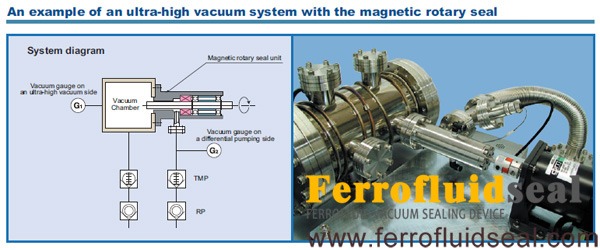

An example of an ultra-high vacuum system with the magnetic rotary seal


We can design special magntice fluid sealing feedthroughs as per customers' equipment requirements.
